[sugar] Ideas for Sugar development environment from HyperLook
SimCity
Don Hopkins
dhopkins at DonHopkins.com
Thu Dec 28 10:58:09 EST 2006
I love the ideas behind Smalltalk, EToys and HyperCard, and would like
to combine them with ideas from visual programming languages like Robot
Odyssey, KidSim, Klik-and-Play, SimAntics, Body Electric/Bounce,
Max/MSP/Jitter, etc.
Here are some ideas about HyperLook and other systems, that could be
applied to Sugar:
HyperLook was a PostScript-based user interface development environment
for the NeWS window system, which Arthur van Hoff created at the Turing
Institute in Glasgow.
http://www.donhopkins.com/home/catalog/hyperlook/
I helped develop HyperLook into a commercial product, with a editable
user interface development environment, as well as a redistributable
non-editable runtime, and I used it to port SimCity to Unix, and develop
other components and applications .
http://www.donhopkins.com/home/catalog/hyperlook/
http://www.donhopkins.com/home/catalog/hyperlook/HyperLook-SimCity.gif
HyperLook was inspired by HyperCard, but it additionally provided a
client/server programming model, and more powerful graphics and
scripting based on NeWS's object oriented dialect of PostScript.

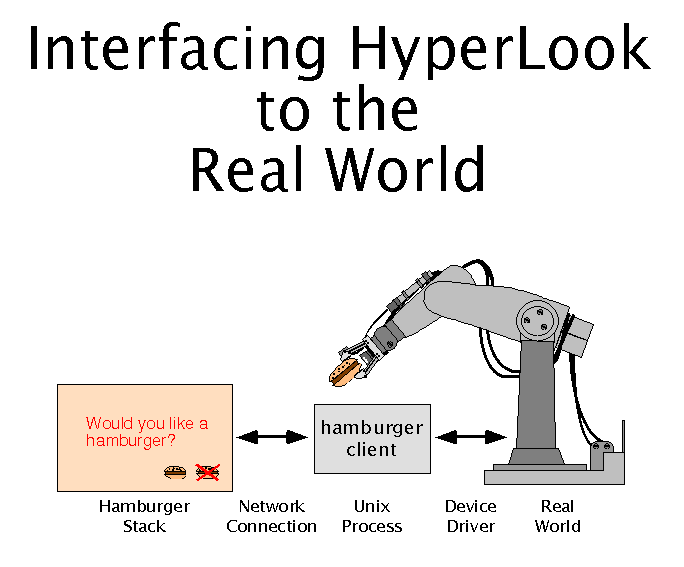

http://www.donhopkins.com/home/catalog/hyperlook/TalkInterfacing.gif
The NeWS window system was like AJAX, but with:
1) PostScript code instead of JavaScript code
2) PostScript graphics instead of DHTML graphics, and
3) PostScript data instead of XML data.
It had a unified programming/graphics/data/networking model based on
NeWS's extended multi-threaded object-oriented dialect of PostScript,
instead of a hodge-podge of accidental technologies. (Although I will be
the first to admit the X11/NeWS merge was quite a hodge-podge and
huge-kludge!)

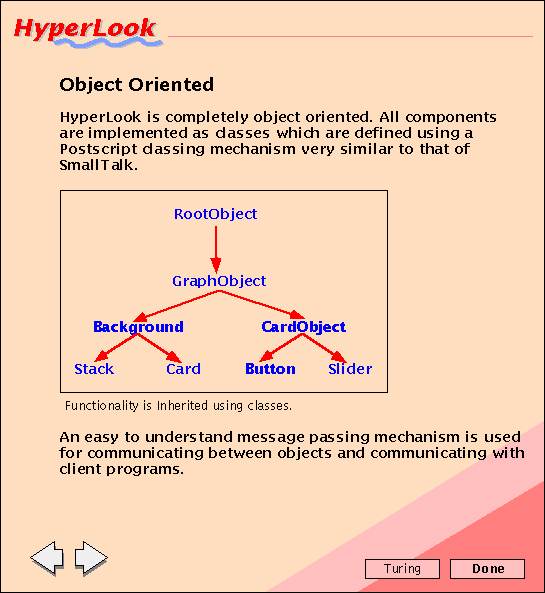

NeWS had an object system based on the simple dynamic ideas of
Smalltalk, implemented with the PostScript dictionary stack, supporting
multiple inheritance and runtime modification of objects and classes.
http://www.donhopkins.com/home/catalog/hyperlook/HyperLookInfo10.gif
HyperLook was a gui development framework and desktop environment, that
extended NeWS with a user-editable structured PostScript graphics
format, a persistence system, a HyperCard-like delegation model using a
network based client/server library, that passed messages from button to
page to background to stack, and finally over the network to the
application (and back), and an entire user interface toolkit, window
manager, gui editor, clipboard and other desktop tools and services, all
designed around the PostScript graphics format and message passing system.
http://www.donhopkins.com/home/catalog/hyperlook/TalkInterfacing.gif

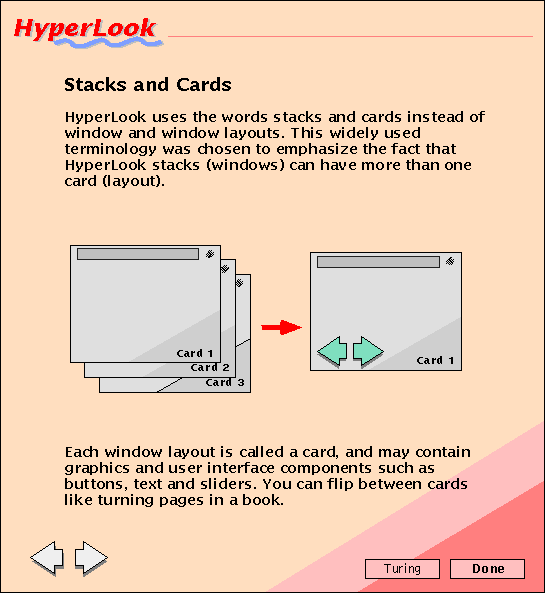

http://www.donhopkins.com/home/catalog/hyperlook/HyperLookInfo2.gif

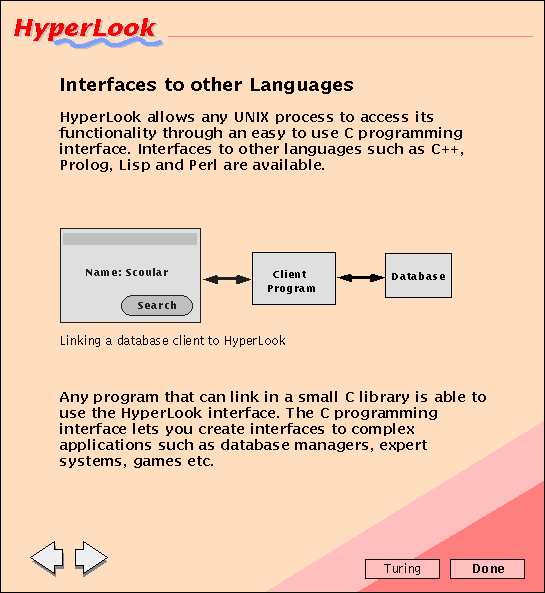

http://www.donhopkins.com/home/catalog/hyperlook/HyperLookInfo11.gif

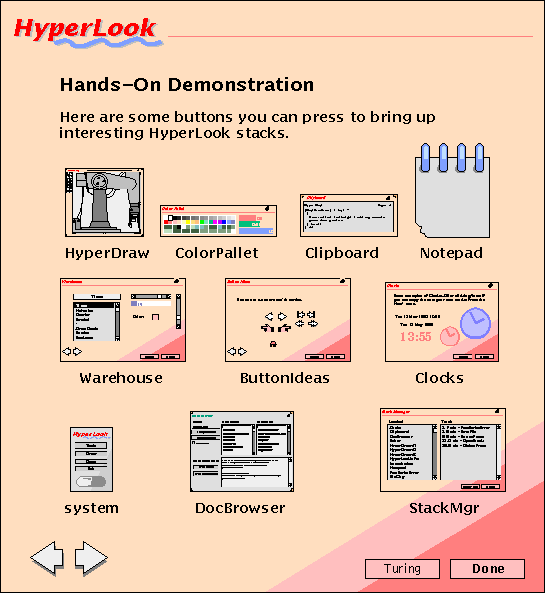

http://www.donhopkins.com/home/catalog/hyperlook/HyperLookInfo13.gif

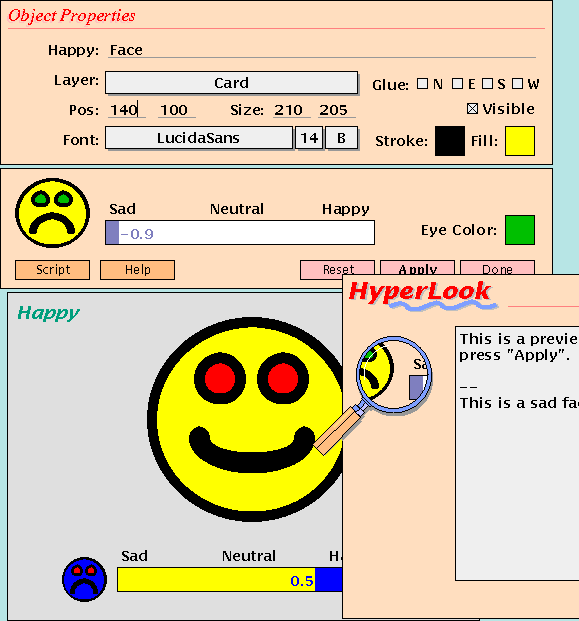

Users could create their own integrated applications, task oriented
interfaces, presentations and journals, by cutting and pasting high
level components and graphics together, configuring them with property
sheets and graphical editors, scripting them with PostScript message
handlers, sending and receiving messages between other stacks and
applications, and customizing applications to suit their needs.
http://www.donhopkins.com/home/catalog/hyperlook/HappyProps.gif
It provided a user-editable window manager, that allowed you to draw and
shape the window frame with arbitrary PostScript graphics, cut and paste
you own resize corners, close boxes, menus, buttons, pie menus and other
controls, as well as combining and scripting together multiple
application components and custom graphics.

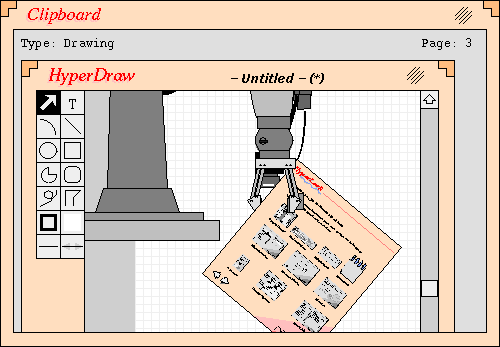

Because everything was based on PostScript, you could print any window
to a PostScript printer or copy it to the clipboard, and iconified
windows were just live miniaturized views.
http://www.donhopkins.com/home/catalog/hyperlook/Clipboard.gif

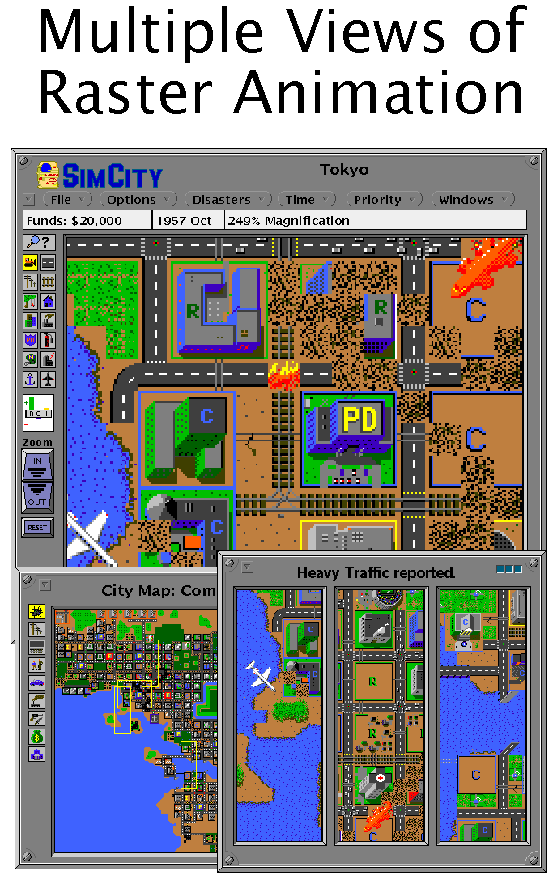

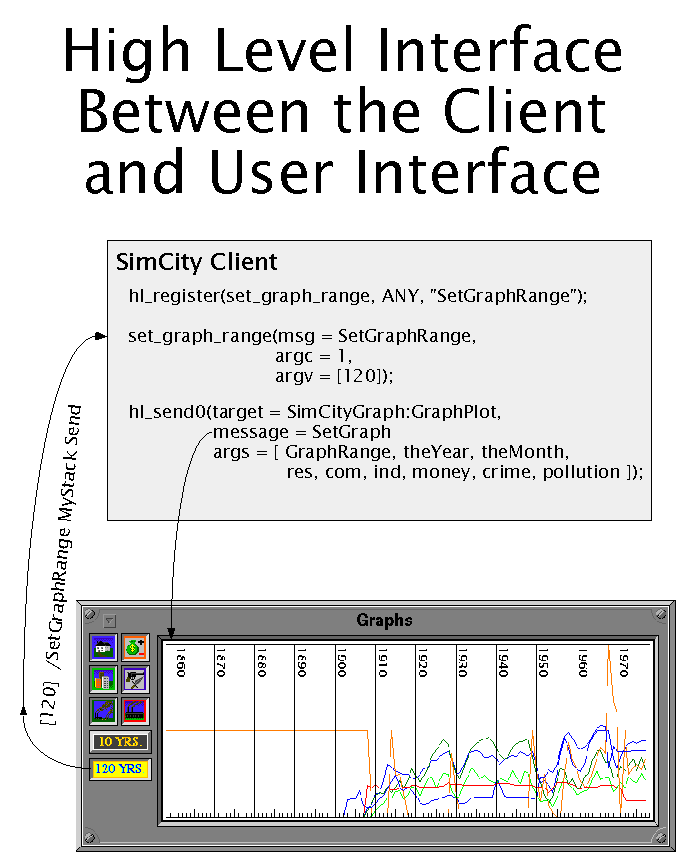

Developers could create back-end services (like audio mixing) and
applications (like SimCity) that could send messages back and forth, use
shared memory for efficient bitmap animation, and share services like
audio mixing with other applications.
http://www.donhopkins.com/home/catalog/hyperlook/TalkGraph.gif
http://www.donhopkins.com/home/catalog/hyperlook/TalkView.gif

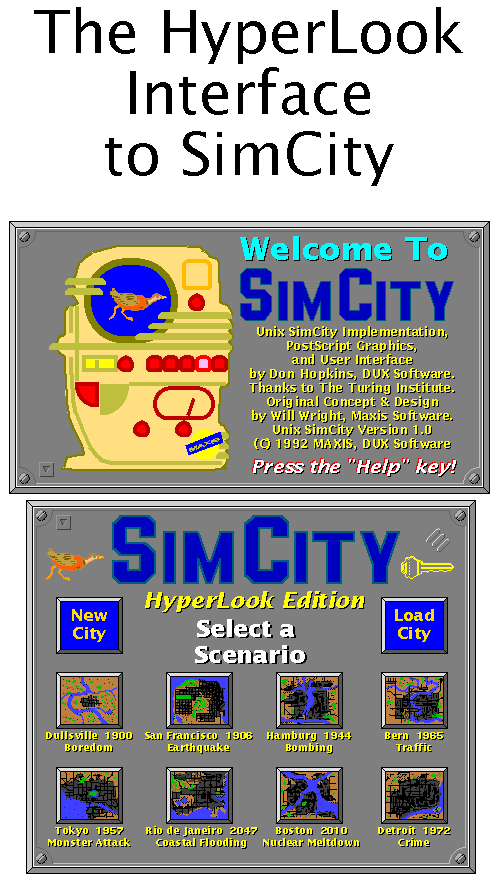

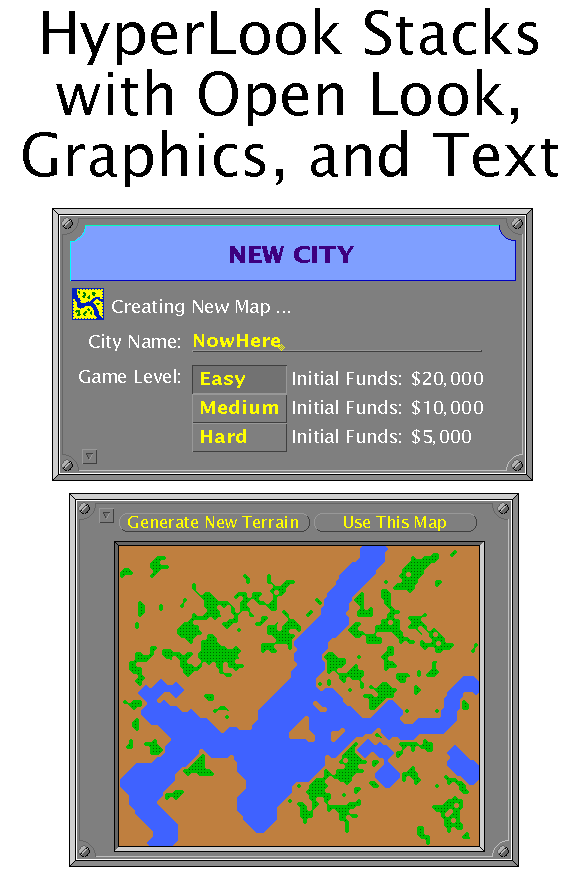

I developed SimCity in parallel with HyperLook, so there was a powerful
synergy, SimCity drove the development of many of HyperLook's features,
and the other way around.
SimCity extended HyperLook with client/server based components like the
city editor, map view, graph display, which could be copied and pasted
and placed anywhere in the interface.
It was great to have a demanding application like SimCity as an acid
test, to shake out bugs and limitations of the platform, and prove the
abilities of general purpose components like bitmap animation and audio
mixing.
http://www.donhopkins.com/home/catalog/hyperlook/TalkIntro.gif
http://www.donhopkins.com/home/catalog/hyperlook/TalkNewCity.gif
HyperLook was a commercial product, with a WYSIWYG interface development
environment for developers, and a freely redistributable non-editable
runtime.
We released it at the same time as SimCity (using SimCity as bait to
entice people to try out the included HyperLook runtime).
http://www.donhopkins.com/home/catalog/hyperlook/HyperLook.README
http://www.donhopkins.com/home/catalog/hyperlook/SimCity.README

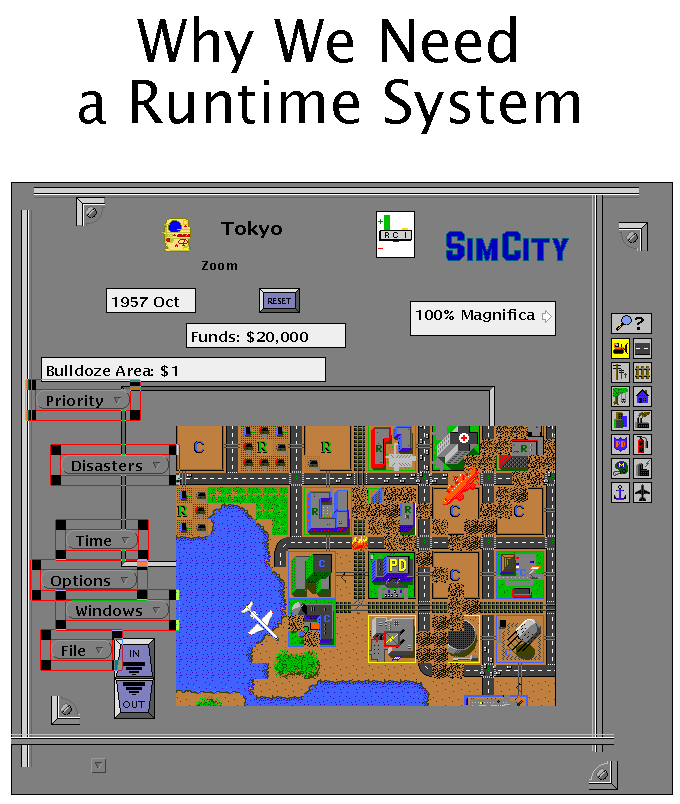

The user interface development environment could be stripped out of the
system to create a non-editable binary-encoded runtime version for
shipping turn-key commercial products, which I delivered with SimCity.
But if you had the development version, you could create your own
stacks, put the interface into edit mode, cut and paste user interface
components around, and edit their scripts (enabling user interface
vandalism).
Personally, I think all users should have a user-editable development
environment, but it's important to be able to lock it down and constrain
it, so casual user's can't accidentally break the system, or get
confused with unnecessary details.
http://www.donhopkins.com/home/catalog/hyperlook/TalkRunTime.gif

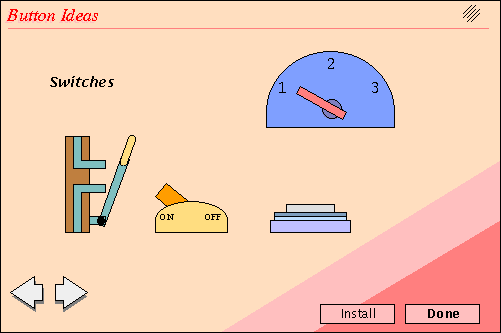

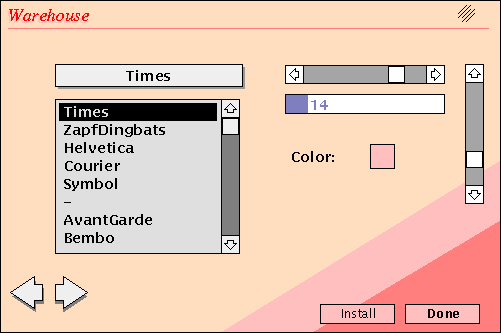

HyperLook included a "warehouse" of pre-configured object templates,
which you could cut and paste into your own stacks, and configure and
script to create your own HyperLook applications, custom interfaces,
interactive presentations, etc.
http://www.donhopkins.com/home/catalog/hyperlook/ButtonIdeas5.gif
http://www.donhopkins.com/home/catalog/hyperlook/Warehouse3.gif
Like HyperCard, you could copy and paste components around (including
per-object customizations like scripts, properties and graphics) to
construct and edit your own interfaces.
Like HyperCard, you could open up a property sheet or script editor on
any object.
Unlike HyperCard, the scripts were written in object oriented
PostScript. (Arthur van Hoff also wrote PdB, an object oriented C to
PostScript compiler, and later went on to write the first Java compiler
in Java at Sun!)
Unlike HyperCard, the property sheets were implemented as HyperLook
stacks themselves, which made it easy to develop new components or
customize property sheets for existing components (i.e. simplified for
kids, graphically oriented for designers, advanced for developers), and
the user interface editor itself was even a plug-in component that could
be removed or replaced (to make a non-editable runtime, or to plug in
simpler or more advanced gui editors).
HyperLook was able to implement its own property sheets as stacks,
because it had a sufficiently rich set of built-in components including
text and graphics editors, and stacks could be scripted to import and
export properties to control settings (to convert between data types and
control values, implement apply/cancel, change detection, and selecting
previously edited objects).
HyperLook included a nice little PostScript graphics editor component
that you could integrate into your own applications and property sheets.

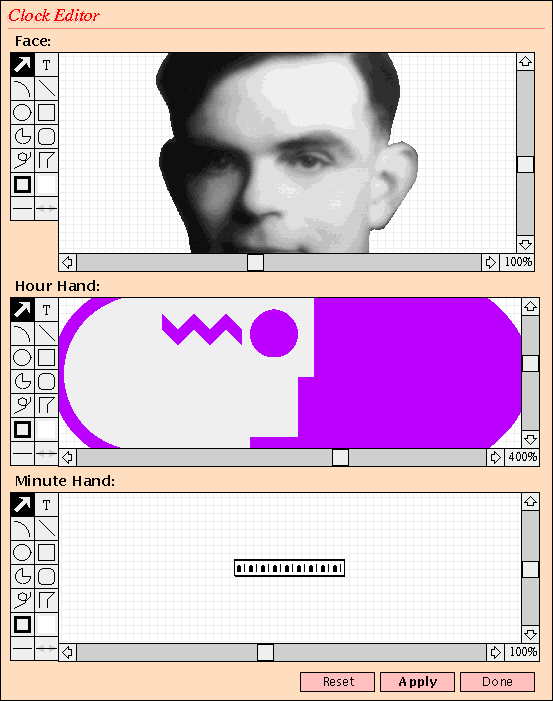

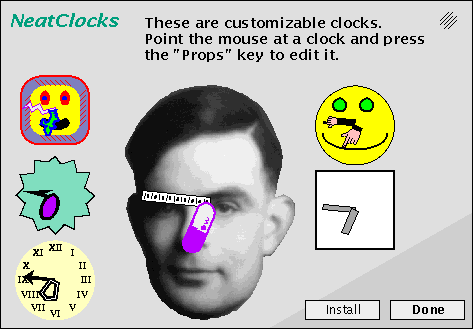

For example, there is a user-customizable clock that lets you edit its
face and hands (by incorporating three graphics editors in its property
sheet), and there are some example clocks, pre-configured in the warehouse.
You can copy them into your own stacks, place and stretch them (since
they're scalable PostScript graphics), modify their appearance with the
clock editor property sheet, and paste your original creations back into
the warehouse to use again:
http://www.donhopkins.com/home/catalog/hyperlook/NeatClockProps.gif
http://www.donhopkins.com/home/catalog/hyperlook/NeatClocks.gif

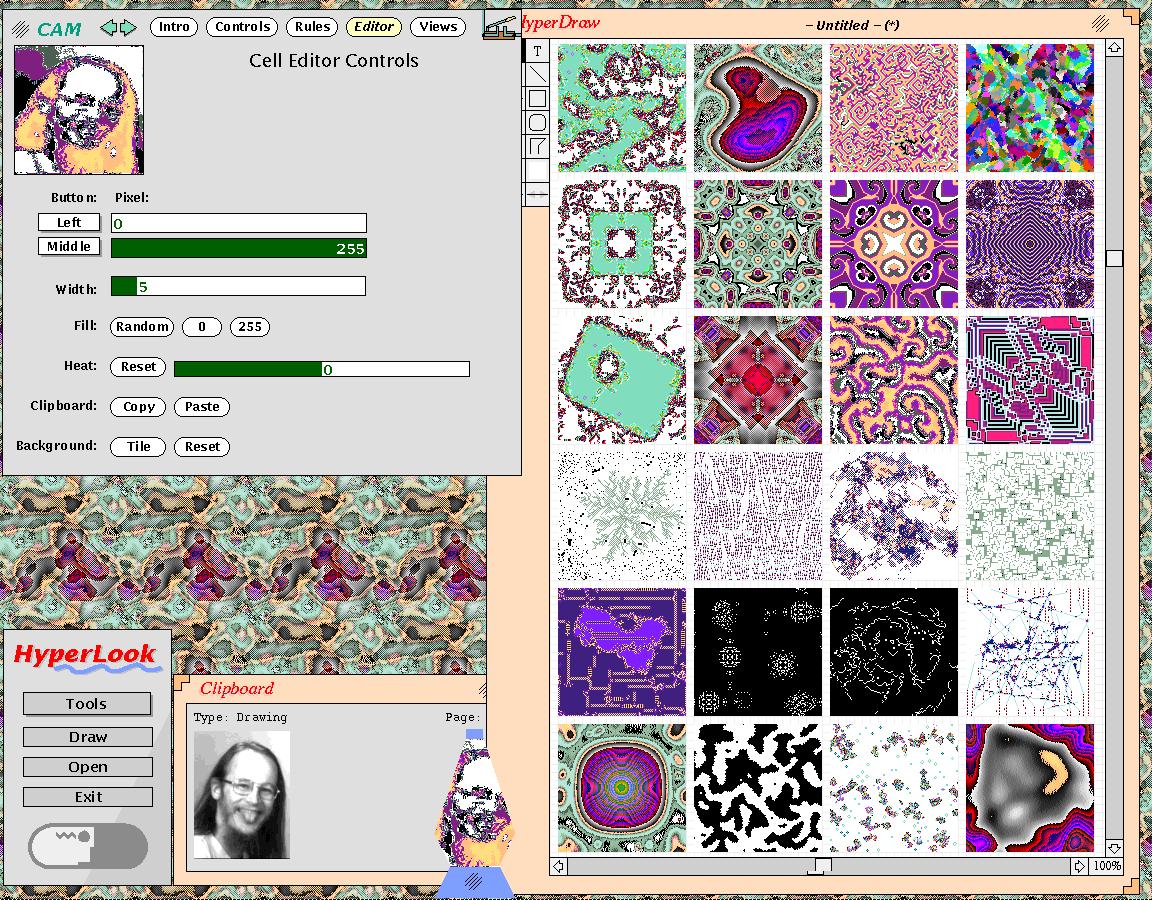

Here's a cellular automata laboratory that uses the shared memory raster
animation library to integrate a Toffoli/Margolis CAM-6 simulator I
wrote in C with the PostScript graphics editor (so you can cut and paste
PostScript graphics into live running cellular automata, and copy the
cells into the graphics editor, and generate garish but seamlessly tiled
screen backgrounds, and place a live bubbling cellular automata view
component clipped into a lava-lamp shaped window!):
http://www.donhopkins.com/home/catalog/hyperlook/CAM.gif
The nice thing about having a standard PostScript based structured
graphics format, is that the entire system supports it, so you are free
to do fun stuff like making a clock face out of a cellular automata or
SimCity map, copying an entire window including its user interface
components as structured graphics, clipping and stretching it in in the
graphics editor, and using it as a clock hand, or whatever else you can
think of.
Here's a transcript and video demo of HyperLook SimCity, cellular
automata, user interface and graphics editing, and cutting and pasting
graphics between various HyperLook applications.
http://www.donhopkins.com/home/catalog/simcity/hyperlook-demo.html
http://www.donhopkins.com/home/movies/HyperLookDemo.mov
It is extremely important that the base system includes a standard
user-editable structured graphics format (higher level that raw
PostScript, but including Encapsulated PostScript or modern equivalents
like PDF, SVG, PNG, etc).
It's also essential to have a reusable structured graphics editor
component, and also that all of the property sheets and applications
take full advantage of it, so you can edit every visual aspect of the
user interface, and copy any graphics to the clipboard with their
structure intact.
HyperLook's graphics editor (HyperDraw) was not too fancy, but it was
really easy to use for the stuff you want to do 90% of the time.
A bitmap image editor would have been really nice too, but that was hard
to build into the NeWS server without a C client, unfortunately, so we
never got around to that (although the CAM stack has some simple drawing
tools for playing with the live cellular automata pixels through shared
memory).
Something like Photoshop or GIMP would be too complicated and
monolithic, unless it could be stripped down and re-packaged as an
light-weight, easy-to-use, plug-in component.
I've worked on and programmed in some interesting visual programming
languages like Bounce (aka Body Electric, VPL's VR scripting language),
SimAntics (The Sims behavior scripting language) and PSIBER (visual
PostScript and NeWS debugger), and played around with others like
Max/MSP/Jitter, ProGraph and KidSim (aka Cocoa, Stagecraft Creator,
which was at once point actually implemented in ProGraph!).
Visual programming languages are great fun, and can be extremely
productive at their finest, but they tend to be quirky, nonstandard,
have more differences than similarities, and extremely weird ways of
looking at the world.
There is no one best way to design the ultimate visual programming
language, but there are many good ideas to be tried (and bad ideas to be
avoided) from previous systems, that could be recombined in interesting
ways.
There will never be one true visual programming language, just like
there will never be one true text programming language, so I think the
system should be designed to accommodate different languages and skill
levels.
In the same way Lisp is excellent for meta-programming application
specific mini-languages, I would like a similarly enlightened system for
creating application specific visual programming languages (like the
Eclipse Visual Editor project, but for a nice dynamic language like
Python, instead of Java).
Microsoft's IScriptingEngine interface lets you plug different scripting
languages like Visual Basic Script, JScript, Perl and Python into the
web browser and other applications.
But COM/ActiveX/OLE Automation isn't the only way to do that.
I am quite happy that Sugar is using Python, because it makes a great
common runtime and "virtual machine language," for implementing visual
programming languages and integrating software modules (especially with
tools like SWIG for integrating native libraries and C++ code).
My ultimate fantasy gui environment would support plugging in different
script editors, with not only easy-to-use but also advanced visual
programming interfaces, tailored to specific tasks and skill levels
(like handling and sending events, solving constraints, processing
signals, playing music, controlling robots, blinking lights, dancing
bears, etc).
Python will serve well as the internal "machine language" that you
compile the visual graph notations into (or interpret the visual
languages directly in Python, if practical).
So kids could easily create a high-level graphical scripts like The
Learning Company's "Robot Odyssey" or Maxis's "Klik-and-Play", and
developers could meticulously create low-level behind-the-scenes scripts
in visual languages like "Body Electric" and "Max", or text language
like Python (or a hybrid of the visual and text languages -- check out
how PSIBER implements a new visual interface to the existing PostScript
language, and how Cycling 74's Max/Jitter integrates JavaScript with the
visual programming language: JS code inside icons, JS objects on wires!):
http://en.wikipedia.org/wiki/Klik_&_Play
http://www.cycling74.com/products/jitter
http://www.cycling74.com/download/JavascriptInMax.pdf
Just imagine a visually scriptable version of SimCity, that lets you
clone and edit the monster, and reprogram him to tend the forests
instead of stomping on buildings!
-Don
Some notes on alternatives to Python:
I love Python, and it's my primary scripting language of choice, but I'm
not a monolinguist or strict interpretationalist, so I think some other
languages are worth considering and learning from, in the long term:
Lua:
Lua is an excellent, well designed and implemented scripting language,
that's extremely light weight and efficient, truly open source, and is
also nicely supported by SWIG.
It's well worth considering if you're starting from a clean slate, and
don't need all of Python's modules, and do care a lot about speed and
size, and want to tightly integrate the scripting language with the
application, without requiring the installation of a bunch of external
files, resources and libraries.
It's very popular in the game industry, widely used in World of
Warcraft, inspired by Lisp but without the macros, easy to learn and to
read, has a pretty good JIT that works on x86 systems, and has a bunch
of useful extensions (but not nearly as many as Python).
Lua has an extremely flexible roll-your-own object system (not one
standard oop paradigm, but the basis for making all different kinds, but
very simple, not nearly as powerful and general purpose as CLOS, not
quite as elegant and minimal (nor as bloated a runtime) as Self).
SWIG supports Lua objects at a kind of low level, but can be extended to
nicely support higher level objects, given a particular model.
But SWIG does not work as well out of the box with Lua as it does with
Python (since Python's object system is well known and not a moving
target subject to the whims of the application programmer).
The fact that Lua doesn't have Python's huge set of modules is both a
blessing and a curse, but Lua actually a bit faster and much smaller
than Python, vastly simpler, has a few weird but tolerable quirks (like
one-based array indexing), and is conceptually cleaner and Lispier than
Python in some nice ways.
According to the computer language shoot-out, it's one of the fastest
and smallest interpreted scripting languages (and presumably even faster
with the JIT, which is not included in that benchmark).
Lua's ratio to C's speed is 6.6, compared to Python's 7.3, which comes
in right behind Lua.
http://shootout.alioth.debian.org/gp4/benchmark.php?test=all&lang=all
JavaScript:
JavaScript is a horribly designed and implemented language, although
it's ubiquitous, never going away, well worth learning, and good enough
to get a lot of stuff done in (Lisp with C syntax, without macros).
However, SpiderMonkey (the original JavaScript interpreter, and the one
in Firefox) is extremely inefficient and wasteful of memory.
According to the computer language shoot-out, it's absolutely the worst
language benchmarked, by a long shot.
SpiderMonkey's ratio to C's speed is 31, compared to Ruby's 16, which is
the next slowest language.
Incredibly, its memory usage is even worse compared to other languages
(ratio to C's size is 32, compared to the next worst Smalltalk
VisualWork's 13), so it's not like it's making a memory-vs-speed
trade-offs to be that slow.
http://shootout.alioth.debian.org/gp4/benchmark.php?test=all&lang=all
I have a hard time believing that JavaScript will ever run as fast or
small as Lua, simply because Lua was well designed to be fast and small
on purpose (and thus avoids inefficient pitfalls by design), and
JavaScript wasn't designed at all, it just happened accidentally.
It would be better to take all the cleverness that you'd have to apply
to JavaScript to make it fast, and apply it to Lua instead -- you'd be
way ahead of the game, you wouldn't be fighting against but remaining
compatible with bad designs, and you'd end up with a much nicer language.
Another important thing that would make me choose Python or Lua over
SpiderMonkey/JavaScript, regardless of the speed and size differences,
is that SWIG supports Python and Lua well, and it doesn't currently
support SpiderMonkey.
However, there is an interesting recent development in JavaScript's favor:
Adobe has donated the source code for the ActionScript VM that's in the
Flash 9 (AVM2)!
http://www.mozilla.org/projects/tamarin/
http://developers.slashdot.org/article.pl?sid=06/11/07/1324224
http://blogs.business2.com/utilitybelt/2006/11/web_20_bombshel.html
It turns out that AVM2 does not totally suck. (There are no benchmarks
available comparing it to other JavaScript VM's, but you can easily see
and feel the huge difference between Flash 8 and Flash 9).
The previous versions of Flash were based on an absolutely horrible and
inefficient virtual machine, which has finally been entirely rewritten
by grown-ups, and includes a JIT, so it has drastically better performance.
They have not made the entire Flash player open source, just the
ActionScript byte code VM, which does not include an actual JavaScript
source code to AVM2 byte code compiler.
(Although they are developing a prototype JavaScript compiler in
JavaScript, it is not fully complete and tested, although it's a great
ambitious idea.)
Adobe has their own ActionScript to VM byte code compiler, but it's not
open source.
Of course a web browser needs a JavaScript compiler, since it downloads
JavaScript in source code form.
But it also totally doesn't suck to be able to download pre-compiled
binary JavaScript byte code (i.e. SWF files).
OpenLaszlo is developing its own open source JavaScript to AMV2 byte
code compiler (the Legals project), so OpenLaszlo will be able to
compile code that it will run in AVM2.
The Mozilla project plans on incorporating AVM2 into the browser to
accelerate JavaScript, but there's still a lot of work to be done.
But I think that AVM2 is a great long term strategy to solve the
performance problems of SpiderMonkey in the web browser, that will
dovetail with OpenLaszlo, and be useful for developing efficient AJAX
applications, using a completely open source software stack.
http://www.openlaszlo.org
Here are some references to work I've done in the past, describing some
ideas that might be applied to Sugar.
NeWS is James Gosling's "Network extensible Window System", which was
based on a multithreaded, networked, object oriented dialect of PostScript.
I developed pie menus for NeWS at the UMCP HCIL, worked on the Open Look
NeWS Toolkit at Sun, and various NeWS tools and applications for other
companies.
http://www.donhopkins.com/drupal/node/92
I developed lots of other fun stuff with NeWS, including various
implementations of pie menus and tab windows:
http://www.donhopkins.com/drupal/node/92
http://www.piemenu.com/DDJPieMenuArticle.html
http://www.piemenu.com/
The NeWS Toolkit was an Open Look user interface toolkit written
entirely in NeWS PostScript, which I helped develop at Sun, and
integrated with HyperLook, and used to develop pie menus and tab windows.
http://www.donhopkins.com/home/catalog/images/tnt.gif
Pizza Tool was a graphical Open Look gui for editing and ordering pizzas
via FAX, that I wrote as a programming demo for The NeWS Toolkit:
http://www.donhopkins.com/home/catalog/images/pizzatool.gif
The HyperTIES hypermedia browser, with pie menus and "applets" scripted
in PostScript (for Ben Shneiderman at the UMCP HCIL):
http://donhopkins.com/drupal/taxonomy/term/61
Emacs "thin wire" NeWS display driver for UniPress Emacs (and later Gnu
Emacs), with pie menus and multiple tab windows, and an authoring tool
for HyperTIES:
http://donhopkins.com/drupal/node/101
HyperLook (aka HyperNeWS and GoodNeWS) was a HyperCard-like user
interface development environment for the NeWS window system.
I worked on HyperLook with Arthur van Hoff at the Turing Institute, and
used it for various applications.
http://www.donhopkins.com/home/catalog/hyperlook/
SimCity is a constructive simulation game from Maxis.
I ported SimCity to HyperLook and X11, and designed a multi player
scriptable user interface using TCL/Tk.
http://www.donhopkins.com/home/catalog/simcity/index.html
PSIBER is a visual interface to PostScript and interactive debugger for
NeWS.
I developed it at the UMCP HCIL and Grasshopper Group.
http://www.donhopkins.com/drupal/node/97
Bounce (aka Body Electric) is a real time data flow visual programming
language, developed at VPL by Chuck Blanchard and used by Jaron Lanier
and others for integrating midi and various i/o devices, driving 3d
rendering engines, scripting VR, scientific, training and artistic
simulations.
I programmed multimedia and character simulations in Bounce, ported it
to PowerPC, developed its user interface, a COM plug-in and type
extension system, and multimedia support, with David Levitt at Levity
and Interval Research Corporation.
http://www.donhopkins.com/home/catalog/lang/bounce/bounce.html
SimAntics is the visual programming language for scripting AI and
behavior in The Sims, pie menus (aka marking menus, compass menus) are
an efficient Fitts'-law-friendly menu selection technique.
I programmed in SimAntics, ported it from the Mac to Windows, and
developed its user interface (Edith) and primitives (character
animation, etc), with Will Wright at Maxis:
http://www.donhopkins.com/drupal/taxonomy/term/35
The Dumbold Voting Machine is an educational agit-prop plug-in for The
Sims, that I programmed in SimAntics to educate people about real voting
machine problems -- check out the "high concept" stuff at the end of the
page:
It's meant to stimulate discussion, illustrate how computer programming
is free speech, and why all election software should be open source and
publicly inspectable.
http://www.dumbold.com/dumbold
This is a movie that demonstrates the character animation system, pie
menus, direct manipulation object placement and architectural editing
tools that I developed for The Sims, as well as an in-depth demo of
SimAntics visual programming with the Edith tool (stepping through the
Satan Generator code):
http://www.donhopkins.com/home/movies/TheSimsPieMenus.mov
More information about the Sugar
mailing list
